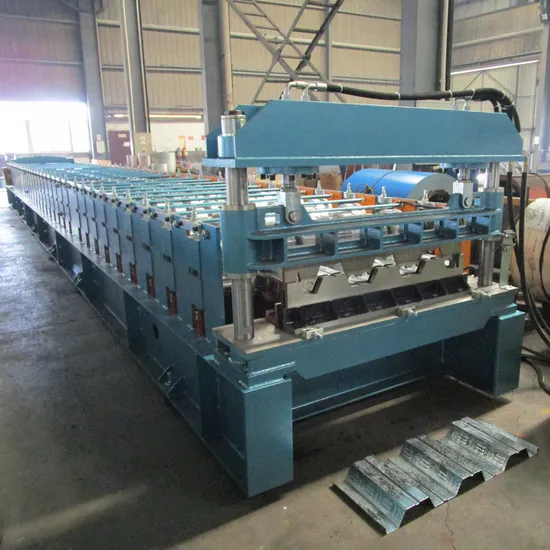

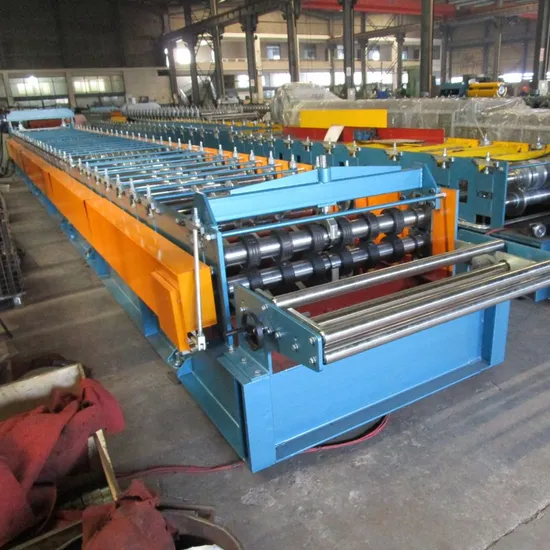

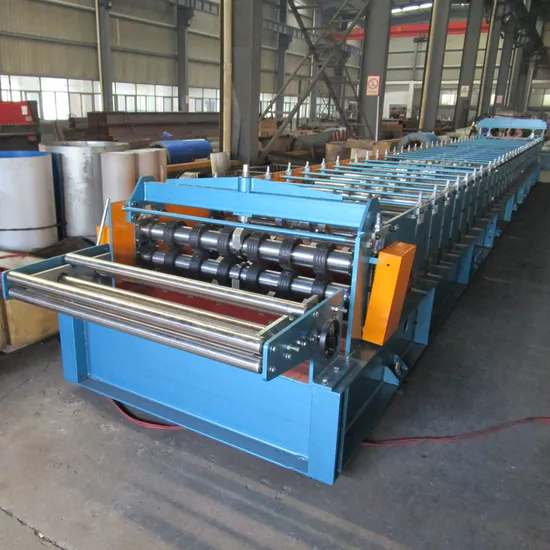

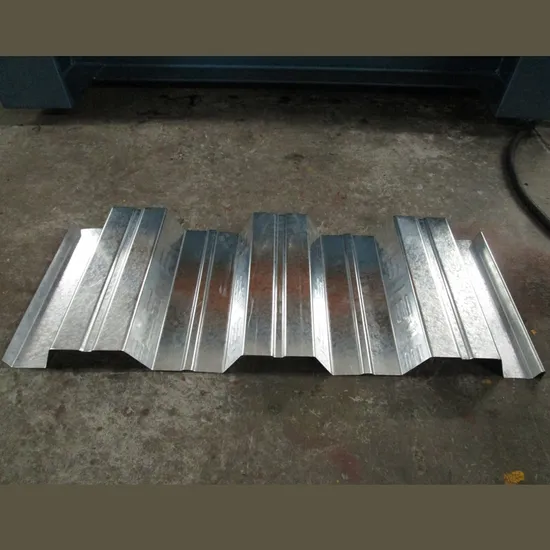

Engineered for high-speed, automated production of steel floor deck panels for commercial and industrial building applications.
Achieves a high forming speed of up to 25m/min for maximum production efficiency.
Equipped with a Mitsubishi PLC automatic control system for precise cutting length and quantity.
Features 30 forming stations with 45# steel rollers plated with chrome for durability and precision.
Constructed with a robust H450 type steel welded frame and 20mm thick side walls for enhanced stability.
Utilizes a Cr12MoV cutting tool with a hardness of 58-60HRC for clean and accurate post-cutting.
Designed with bearings inside rollers to reduce load and extend the machine's operational life beyond 15 years.
Applicable Material: Galvanized coils (GI)
Material Thickness: 0.7-1.6 mm
Forming Speed: 25 m/min
Roller Stations: 30
Shaft Diameter: 82mm / 90mm / 100mm solid steel
Main Motor Power: 11kW*2 with frequency speed control
