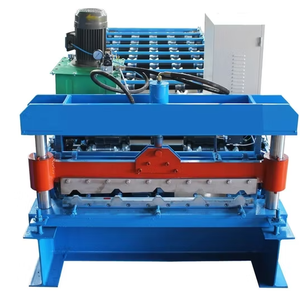

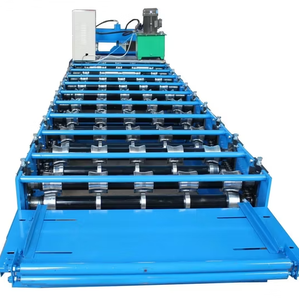

Industrial Roll Forming Machine designed to produce IBR Trapezoid 840 metal roofing panels. Suitable for B2B manufacturing and construction supply, processing 0.3-0.8mm material.
Specifically designed to produce the IBR Trapezoid 840 profile for metal roofing sheets.
Accommodates input material thickness ranging from 0.3mm to 0.8mm.
Features approximately 14-15 forming stages ensuring accurate profile shaping.
Utilizes robust 45# steel forming rollers with hard chrome coating for durability.
Achieves efficient production speeds of 13-15 meters per minute.
Built on a sturdy 350H steel frame for stability during operation.
Powered by a 4KW main forming motor and a 3KW hydraulic station motor for cutting.
Profile Type: IBR Trapezoid 840
Material Thickness Range: 0.3mm - 0.8mm
Forming Stations: 14-15 Rows
Forming Speed: 13-15 m/min
Shaft Diameter: 70mm
Main Motor Power: 4 KW
Hydraulic Motor Power: 3 KW
