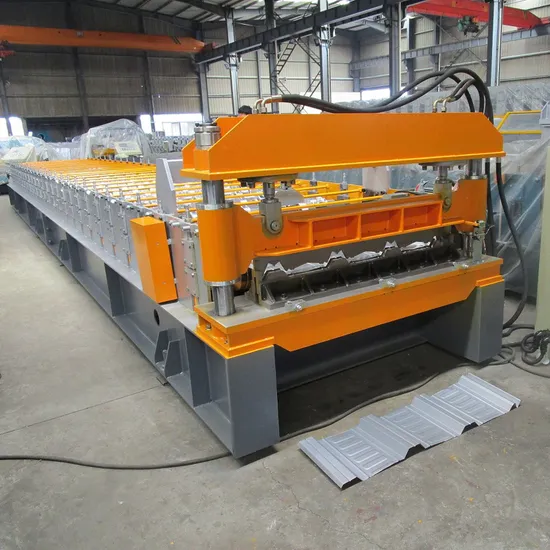

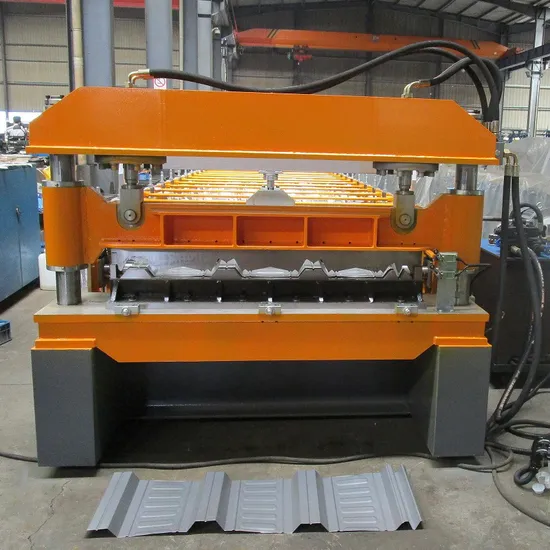

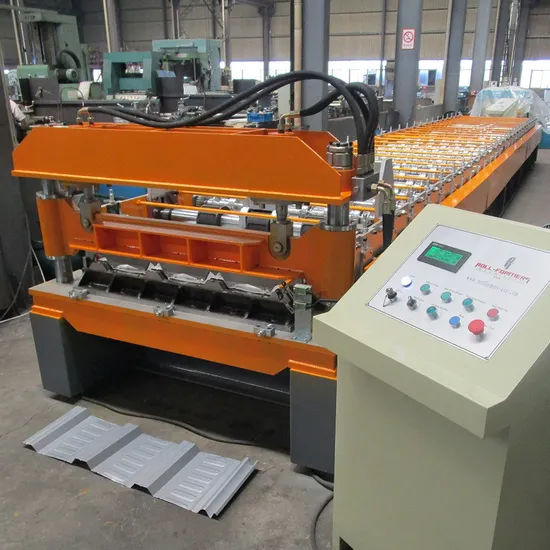

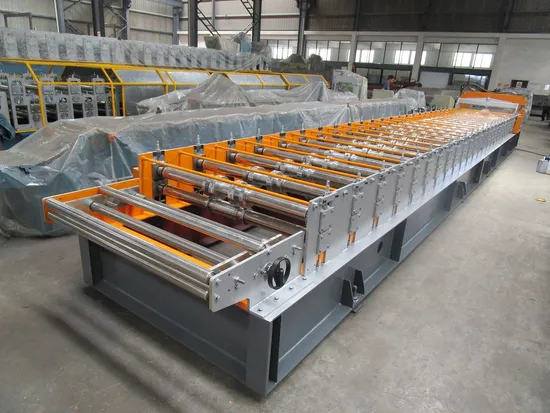

High-precision cold roll forming machine for manufacturing metal corrugated zinc profile roofing and wall sheets.
Engineered with a robust H350 type steel welded frame for guaranteed precision and a service life of over 10 years.
Features high-grade 45# forged steel rollers, CNC processed and chrome plated for superior hardness and accuracy.
Equipped with a Mitsubishi PLC automatic control system for precise management of quantity and cutting length to a tolerance of ≤±1 mm.
Achieves an efficient forming speed of 20-25m/min, ideal for high-volume production of roofing and wall panels.
Solid 72mm diameter shafts, tooled twice by cylindrical grinding, ensure final precision for high-accuracy sheet forming.
The machine is certified with CE and ISO9001, ensuring it meets international quality and safety standards.
Applicable Material: PPGI steel coils
Material Thickness: 0.3 mm - 0.7 mm
Forming Speed: 20-25 m/min
Main Motor Power: 7.5KW
Roller Stations: Approximately 26
Control System: Mitsubishi PLC (Japan)
