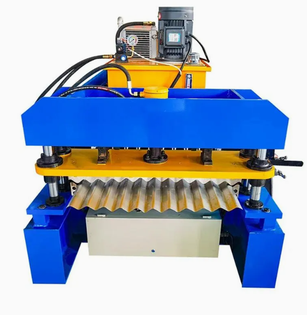

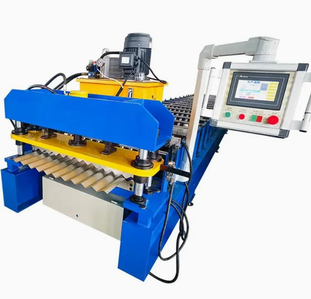

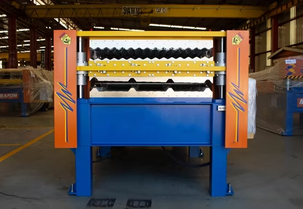

Fully automatic, double layer Roll Forming Machine producing both IBR Trapezoidal 760 and Corrugated 803 profiles. High-efficiency solution for B2B roofing sheet production.
Efficiently produces two distinct roofing profiles (IBR Trapezoidal 760 and Corrugated 803) on a single machine frame.
Processes steel coil with thickness ranging from 0.3mm to 0.8mm.
Features durable 40Cr steel rollers with quenching and hard chrome plating.
Achieves forming speeds of up to 15 meters per minute for efficient production runs.
Equipped with a reliable PLC control system for automated length counting and cutting.
Utilizes a robust hydraulic cutting system with long-lasting Cr12 quenched blades.
Built on a sturdy H-steel welded base for stability and operational longevity.
Profile Types: IBR Trapezoidal 760 / Corrugated 803
Material Thickness: 0.3mm - 0.8mm
Forming Speed: Up to 15 m/min
Roller Material: 40Cr Steel (Quenched, Chromed)
Shaft Material: Steel (Tempered)
Control System: PLC Automatic Control (Delta/Siemens/Schneider options)
